用CSS3动画特效实现弹窗效果(2)

发布时间:2018-10-11 23:08:05编辑:丝画阁阅读(1055)


CSS3特殊效果

   CSS3为用户添加了三个特殊效果的处理方式:过渡、动画、变化。当用户和界面元素交互时,使用这些特殊样式可大大改善用户的体验效果。这些效果直接由浏览器引擎处理,可以节省开销。尽管如此,它们也会耗费大量的处理能力,尤其是一些复杂的WEB页面上。即使是最基本的效果,也是如此。本篇的目的只是熟悉下这三种CSS处理效果,不推荐在实际系统中大篇幅使用。

    温馨提示:请谨慎大篇幅使用这些特殊效果。

    另外一方面,由于在CCS3标准化之前,主流浏览器都是通过添加厂商前缀方式提供样式支持。所以要解决浏览器兼容问题,使用这些样式,我们不得不为每一个样式添加各个产商前缀,例如添加一个过度延迟属性transition-delay,不得不这样写:

-webkit-transition-delay: 300ms;
-o-transition-delay: 300ms;
-moz-transition-delay: 300ms;
-ms-transition-delay: 300ms;
transition-delay: 300ms;

   代码量增加,不利于阅读。

最终效果

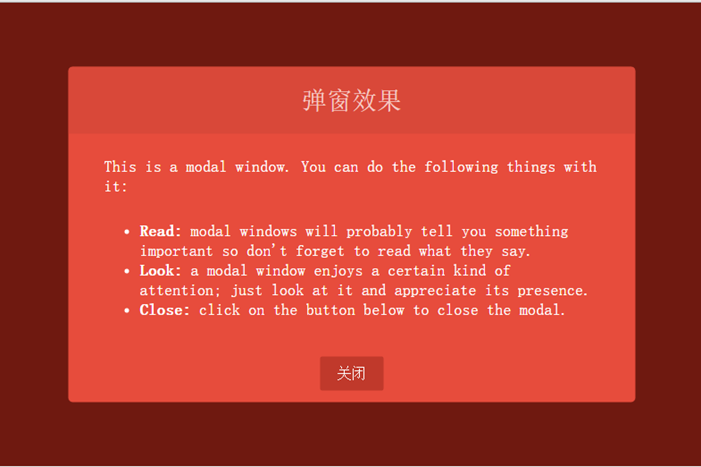

    先看看最终实现的效果:

dialog

    效果比较简单,包括以下几点:

    窗口透明度发生变化,从最初的0渐变到1。

    窗口位置从浏览器底部渐变到浏览器居中位置。

    窗口有一个90度的翻转效果。

    窗口有遮挡层,弹窗时,遮挡层透明度从0渐变到0.7。

    窗口关闭时所有动画反向执行。

弹窗布局

    首先实现弹出窗口样式,弹窗在浏览器可见窗口显示,所有需要设置position为fixed。窗口容器样式如下:

复制代码
.dialog-root{ position: fixed; z-index: 2000; left: 50%; top: 50%; transform: translate(-50%, -50%);
        }
复制代码

   直接设置left和top为50%可让元素左上角原点在浏览器居中,但是我们要以窗口的中心位置作为原点,使用CSS变换特效(transform)的平移translate函数可达到目的。这里补充下变换效果有哪些函数:

    translate(x, y)(长度值或者百分比):在水平方向、垂直方向平移元素。

    translateX(value):水平方向平移。

    translateY(value):垂直方向平移。

    scale(x, y)、scaleX(value)、scaleY(value):在水平方向、垂直方向或者两个方向上缩放元素。

    rotate()、rotateX()、rotateY()、rotateZ():rotate支持3D效果,可在x、y、z轴上旋转元素。

    skew()、skewX()、skewY():在水平方向、垂直方向或者两个方向倾斜一定的角度。



    窗口布局完整样式:

复制代码
html lang="en"> head> meta charset="UTF-8"> title>CSS特殊效果title> style tpe="text/css"> /* ---------------------公共样式 -------------------*/ body{ background: #000; } p { display: block; -webkit-margin-before: 1em; -webkit-margin-after: 1em; -webkit-margin-start: 0px; -webkit-margin-end: 0px; } a, button{ outline: none; } button { border: none; padding: 0.6em 1.2em; background: #c0392b; color: #fff; font-size: 1em; cursor: pointer; display: block; margin: 3px auto; border-radius: 2px; } button:hover, button:active, button:focus{ border: none; } /* ---------------------弹窗样式 -------------------*/ /* 遮挡层样式 */ .dialog-face{ position: fixed; background: #A02418; height: 100%; width: 100%; z-index: 1000; top: 0; left: 0; opacity: 0.7; } /* 弹窗布局样式 */ .dialog-root{ position: fixed; z-index: 2000; left: 50%; top: 50%; transform: translate(-50%, -50%); } /* 弹窗容器 */ .dialog-wrapper{ background: #E74C3C; width: 635px; height: 375px; overflow: hidden; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; } /* 弹窗标题 */ .dialog-header{ height: 75px; background: #d94839; text-align: center; } .dialog-header span{ font-size: 28px; line-height: 75px; color:#F6CBC6; } /* 弹窗内容 */ .dialog-content{ font-weight: 300; font-size: 1.15em; color: #fff; padding: 15px 40px 20px 40px; margin: 0; } .dialog-content p{ margin: 0; padding: 10px 0; } style> head> body> div id="dialog-face" class="dialog-face"> div> div id="dialog" class="dialog-root"> div id="dialog-wrapper" class="dialog-wrapper"> div class="dialog-header"> span>弹窗效果span> div> div class="dialog-content"> p>This is a modal window. You can do the following things with it:p> ul> li>strong>Read:strong> modal windows will probably tell you something important so don't forget to read what they say.li> li>strong>Look:strong> a modal window enjoys a certain kind of attention; just look at it and appreciate its presence.li> li>strong>Close:strong> click on the button below to close the modal.li> ul> div> div class="dialog-footer"> button>关闭button> div> div> div> body> html>
复制代码

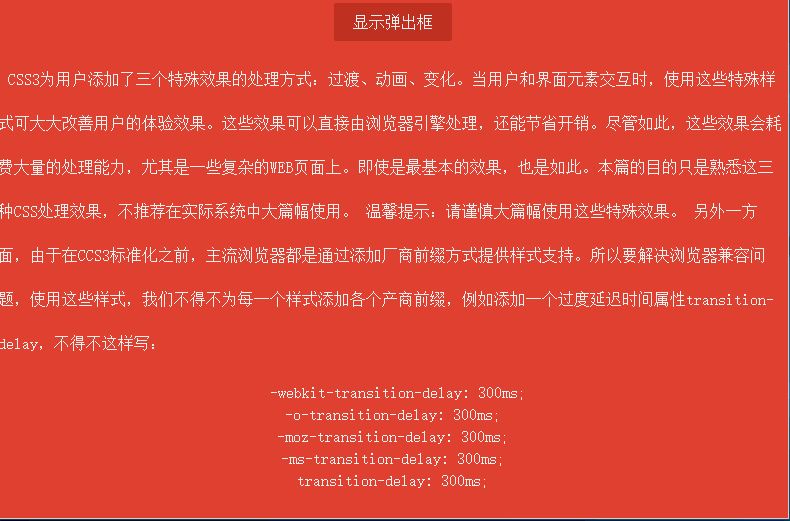

    效果如下:


动画实现

    先看看CSS3为我们提供了的动画属性:

    animation-delay:设置动画开始前的延迟时间。

    animation-direction:设置动画循环播放的时候是否方向播放,包含normal和alternate两个值。

    animation-duration:设置动画播放持续的时间。

    animation-interacion-count:设置动画的播放次数,可以为具体数据或者无限循环关键字infinite。

    animation-name:指定动画名称。

    animation-play-state:允许动画暂停和重新播放,包含running、paused。

    animation-timing-function:指定如何计算中间动画值,



    CSS3动画为我们提供了关键帧设置,我们可以按百分比设置动画。首先弹窗是从窗口底部向上平移到中间位置。设置的关键帧如下:

复制代码
 @keyframes dialogSlipToUp { 0%{
                top: 100%; opacity: 0.3;
            } 100%{ top: 50%; opacity: 1;
            } }

        @keyframes dialogSlipToBottom { 0%{
                top: 50%; opacity: 1; -webkit-transform: translate(-50%, -50%); -moz-transform: translate(-50%, -50%); -ms-transform: translate(-50%, -50%); -o-transform: translate(-50%, -50%); transform: translate(-50%, -50%);
            } 100%{ top: 100%; opacity: 0.3; -webkit-transform: translate(-50%, 0); -moz-transform: translate(-50%, 0); -ms-transform: translate(-50%, 0); -o-transform: translate(-50%, 0); transform: translate(-50%, 0);
            } }
复制代码

   上面就是关键帧的定义代码,dialogSlipToBottom和dialogSlipToUp是关键帧名称,元素类可通过animation-name属性使用。dialogSlipToUp是弹窗时的动画效果,透明度从0.3渐变到1并且元素从浏览器底部位置渐变到居中位置。在关闭窗口时使用dialogSlipToBottom作为动画,效果和dialogSlipToUp反向,另外,还使用了变换效果的tranlate函数,因为窗口的中心点在窗口中心,移到窗口底部时有1/2的高度没有隐藏掉,所以使用translate(-50%, 0)让中心点移到顶部,这样整个窗口就可以完全隐藏了。



    弹窗有一个3D旋转效果,使用CSS3的3D动画,我们必须选择一个容器作为透视容器,只有在这个容器中设置动画才有效。通过添加perspective属性设置容器为透视容器,我们把dialog-root作为3D动画容器,样式如下:

复制代码
.dialog-root{ position: fixed; z-index: 2000; left: 50%; -webkit-animation-duration: 500ms; -moz-animation-duration: 500ms; -o-animation-duration: 500ms; animation-duration: 500ms; -webkit-perspective: 1300px; -moz-perspective: 1300px; perspective: 1300px;
}
复制代码

   通过perspective属性设置透视容器透视举例为1300像素,另外动画的周期(animation-duration)为500毫秒。



    弹窗的旋转实现是从浏览器由内向外90度旋转,设置transform-origin: 50% 100%,让窗口以底线作为旋转轴。旋转容器样式如下:

复制代码
.dialog-wrapper{ background: #E74C3C; width: 635px; height: 375px; overflow: hidden; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; -webkit-animation-duration: 500ms; -moz-animation-duration: 500ms; -o-animation-duration: 500ms; animation-duration: 500ms; -webkit-transform-origin: 50% 100%; -moz-transform-origin: 50% 100%; -ms-transform-origin: 50% 100%; -o-transform-origin:50% 100%; transform-origin: 50% 100%;
        } .dialog-wrapper.slipUp{ -webkit-transform: rotateX(0deg); -moz-transform: rotateX(0deg); -ms-transform: rotateX(0deg); -o-transform: rotateX(0deg); transform: rotateX(0deg); -webkit-animation-name: contentSlipToUp; -moz-animation-name: contentSlipToUp; -o-animation-name: contentSlipToUp; animation-name: contentSlipToUp;
        } .dialog-wrapper.slipBottom{ -webkit-transform: rotateX(90deg); -moz-transform: rotateX(90deg); -ms-transform: rotateX(90deg); -o-transform: rotateX(90deg); transform: rotateX(90deg); -webkit-animation-name: contentSlipToBottom; -moz-animation-name: contentSlipToBottom; -o-animation-name: contentSlipToBottom; animation-name: contentSlipToBottom;
        }
复制代码



    添加弹出或关闭窗口函数函数:toggleDialog,传入一个布尔值,true表示弹窗,false表示关闭窗口。代码如下:

复制代码
function toggleDialog(show){ var animationClass = show ? "slipUp" : "slipBottom"; var animation = function(){ var ele = document.getElementById("dialog-face");
        ele.className = "dialog-face " + animationClass;
        ele = document.getElementById("dialog");
        ele.className = "dialog-root " + animationClass;
        ele = document.getElementById("dialog-wrapper");
        ele.className = "dialog-wrapper " + animationClass;
    };

    setTimeout(animation, 100);
}
复制代码

完整代码

复制代码
DOCTYPE html> html lang="en"> head> meta charset="UTF-8"> title>CSS特殊效果title> style tpe="text/css"> /* ---------------------公共样式 -------------------*/ body{ background: #000; } .none{ display: none; } .layout-root{ position: fixed; background: #E74C3C; height: 100%; width: 100%; z-index: 1000; top: 0; left: 0; } .layout-content{ line-height: 44px; font-weight: 300; font-size: 1em; color: #fff; text-indent: 10px; } .layout-content .code{ line-height: 22px; text-align: center; } p { display: block; -webkit-margin-before: 1em; -webkit-margin-after: 1em; -webkit-margin-start: 0px; -webkit-margin-end: 0px; } a, button{ outline: none; } button { border: none; padding: 0.6em 1.2em; background: #c0392b; color: #fff; font-size: 1em; cursor: pointer; display: block; margin: 3px auto; border-radius: 2px; } button:hover, button:active, button:focus{ border: none; } /* ---------------------弹窗样式 -------------------*/ .dialog-face{ position: fixed; background: #A02418; height: 100%; width: 100%; z-index: 1000; top: 0; left: 0; -webkit-animation-duration: 500ms; -moz-animation-duration:500ms; -o-animation-duration:500ms; animation-duration: 500ms; } .dialog-face.slipBottom[opacity="0"]{ display: none; } .dialog-face.slipUp{ opacity: 0.7; -webkit-animation-name: dialogFaceSlipToUp; -moz-animation-name: dialogFaceSlipToUp; -o-animation-name: dialogFaceSlipToUp; animation-name: dialogFaceSlipToUp; } .dialog-face.slipBottom{ opacity: 0; visibility: hidden; -webkit-animation-name: dialogFaceSlipToBottom; -moz-animation-name: dialogFaceSlipToBottom; -o-animation-name: dialogFaceSlipToBottom; animation-name: dialogFaceSlipToBottom; } .dialog-root{ position: fixed; z-index: 2000; left: 50%; -webkit-animation-duration: 500ms; -moz-animation-duration: 500ms; -o-animation-duration: 500ms; animation-duration: 500ms; -webkit-perspective: 1300px; -moz-perspective: 1300px; perspective: 1300px; } .dialog-root.slipUp{ top: 50%; opacity: 1; -webkit-animation-name: dialogSlipToUp; -moz-animation-name: dialogSlipToUp; -o-animation-name: dialogSlipToUp; animation-name: dialogSlipToUp; -webkit-transform: translate(-50%, -50%); -o-transform: translate(-50%, -50%); -moz-transform: translate(-50%, -50%); -ms-transform: translate(-50%, -50%); transform: translate(-50%, -50%); } .dialog-root.slipBottom{ top: 100%; opacity: 0.3; -webkit-animation-duration: 500ms; -moz-animation-duration: 500ms; -o-animation-duration: 500ms; animation-duration: 500ms; -webkit-animation-name: dialogSlipToBottom; -moz-animation-name: dialogSlipToBottom; -o-animation-name: dialogSlipToBottom; animation-name: dialogSlipToBottom; -webkit-transform: translate(-50%, 0); -o-transform: translate(-50%, 0); -moz-transform: translate(-50%, 0); -ms-transform: translate(-50%, 0); transform: translate(-50%, 0); } .dialog-wrapper{ background: #E74C3C; width: 635px; height: 375px; overflow: hidden; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; -webkit-animation-duration: 500ms; -moz-animation-duration: 500ms; -o-animation-duration: 500ms; animation-duration: 500ms; -webkit-transform-origin: 50% 100%; -moz-transform-origin: 50% 100%; -ms-transform-origin: 50% 100%; -o-transform-origin:50% 100%; transform-origin: 50% 100%; } .dialog-wrapper.slipUp{ -webkit-transform: rotateX(0deg); -moz-transform: rotateX(0deg); -ms-transform: rotateX(0deg); -o-transform: rotateX(0deg); transform: rotateX(0deg); -webkit-animation-name: contentSlipToUp; -moz-animation-name: contentSlipToUp; -o-animation-name: contentSlipToUp; animation-name: contentSlipToUp; } .dialog-wrapper.slipBottom{ -webkit-transform: rotateX(90deg); -moz-transform: rotateX(90deg); -ms-transform: rotateX(90deg); -o-transform: rotateX(90deg); transform: rotateX(90deg); -webkit-animation-name: contentSlipToBottom; -moz-animation-name: contentSlipToBottom; -o-animation-name: contentSlipToBottom; animation-name: contentSlipToBottom; } .dialog-header{ height: 75px; background: #d94839; text-align: center; } .dialog-header span{ font-size: 28px; line-height: 75px; color:#F6CBC6; } .dialog-content{ font-weight: 300; font-size: 1.15em; color: #fff; padding: 15px 40px 20px 40px; margin: 0; } .dialog-content p{ margin: 0; padding: 10px 0; } .dialog-footer{ } /* ---------------------动画关键帧 -------------------*/ @keyframes dialogFaceSlipToUp { 0%{
               opacity: 0; } 100%{ opacity: 0.7; } }

        @keyframes dialogFaceSlipToBottom { 0%{
                opacity: 0.7; visibility:visible; } 100%{ visibility: hidden; opacity: 0; } }

        @keyframes dialogSlipToUp { 0%{
                top: 100%; opacity: 0.3; } 100%{ top: 50%; opacity: 1; } }

        @keyframes dialogSlipToBottom { 0%{
                top: 50%; opacity: 1; -webkit-transform: translate(-50%, -50%); -moz-transform: translate(-50%, -50%); -ms-transform: translate(-50%, -50%); -o-transform: translate(-50%, -50%); transform: translate(-50%, -50%); } 100%{ top: 100%; opacity: 0.3; -webkit-transform: translate(-50%, 0); -moz-transform: translate(-50%, 0); -ms-transform: translate(-50%, 0); -o-transform: translate(-50%, 0); transform: translate(-50%, 0); } }

        @keyframes contentSlipToUp { 0%{
                -webkit-transform: rotateX(90deg); -moz-transform: rotateX(90deg); -ms-transform: rotateX(90deg); -o-transform: rotateX(90deg); transform: rotateX(90deg); } 100%{ -webkit-transform: rotateX(0deg); -moz-transform: rotateX(0deg); -ms-transform: rotateX(0deg); -o-transform: rotateX(0deg); transform: rotateX(0deg); } }

        @keyframes contentSlipToBottom { 0%{
                -webkit-transform: rotateX(0deg); -moz-transform: rotateX(0deg); -ms-transform: rotateX(0deg); -o-transform: rotateX(0deg); transform: rotateX(0deg); } 60%{ -webkit-transform: rotateX(60deg); -moz-transform: rotateX(60deg); -ms-transform: rotateX(60deg); -o-transform: rotateX(60deg); transform: rotateX(60deg); } 100%{ -webkit-transform: rotateX(90deg); -moz-transform: rotateX(90deg); -ms-transform: rotateX(90deg); -o-transform: rotateX(90deg); transform: rotateX(90deg); } } style> head> body> div class="fixed layout-root"> div class="layout-content"> button onclick="toggleDialog(true)">显示弹出框button> div> div class="layout-content"> p> CSS3为用户添加了三个特殊效果的处理方式:过渡、动画、变化。当用户和界面元素交互时,使用这些特殊样式可大大改善用户的体验效果。这些效果可以直接由浏览器引擎处理,还能节省开销。尽管如此,这些效果会耗费大量的处理能力,尤其是一些复杂的WEB页面上。即使是最基本的效果,也是如此。本篇的目的只是熟悉这三种CSS处理效果,不推荐在实际系统中大篇幅使用。

                温馨提示:请谨慎大篇幅使用这些特殊效果。

                另外一方面,由于在CCS3标准化之前,主流浏览器都是通过添加厂商前缀方式提供样式支持。所以要解决浏览器兼容问题,使用这些样式,我们不得不为每一个样式添加各个产商前缀,例如添加一个过度延迟时间属性transition-delay,不得不这样写: p> p class="code"> -webkit-transition-delay: 300ms;br> -o-transition-delay: 300ms;br> -moz-transition-delay: 300ms;br> -ms-transition-delay: 300ms;br> transition-delay: 300ms; p> div> div> div id="dialog-face" class="none"> div> div id="dialog" class="none"> div id="dialog-wrapper"> div class="dialog-header"> span>弹窗效果span> div> div class="dialog-content"> p>This is a modal window. You can do the following things with it:p> ul> li>strong>Read:strong> modal windows will probably tell you something important so don't forget to read what they say.li> li>strong>Look:strong> a modal window enjoys a certain kind of attention; just look at it and appreciate its presence.li> li>strong>Close:strong> click on the button below to close the modal.li> ul> div> div class="dialog-footer"> button onclick="toggleDialog(false)">关闭button> div> div> div> script type="text/javascript"> function toggleDialog(show){ var animationClass = show ? "slipUp" : "slipBottom"; var animation = function(){ var ele = document.getElementById("dialog-face");
                ele.className = "dialog-face " + animationClass;
                ele = document.getElementById("dialog");
                ele.className = "dialog-root " + animationClass;
                ele = document.getElementById("dialog-wrapper");
                ele.className = "dialog-wrapper " + animationClass;
            };

            setTimeout(animation, 100);
        } script> body> html>
复制代码
